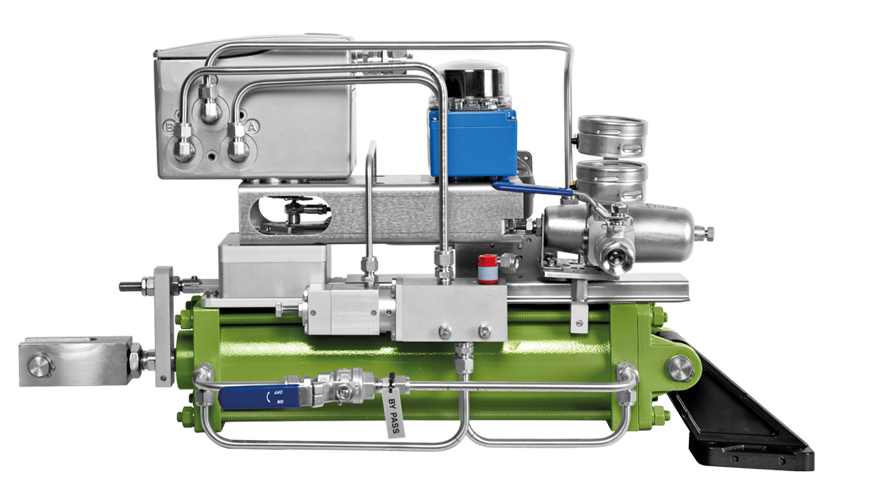

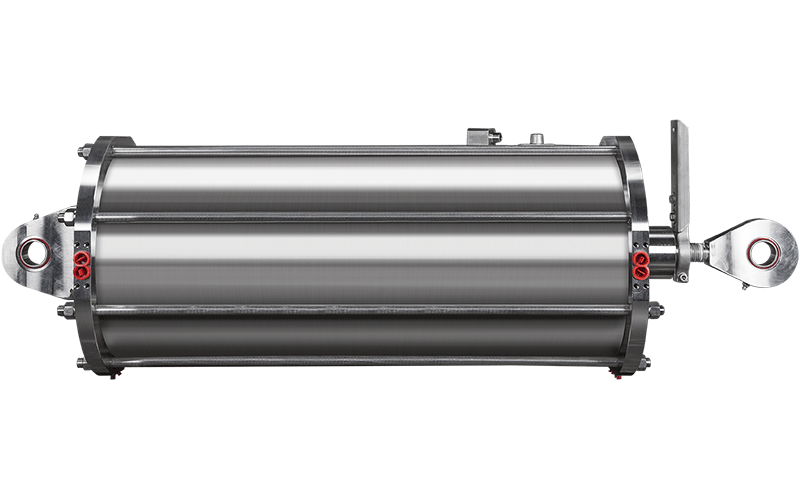

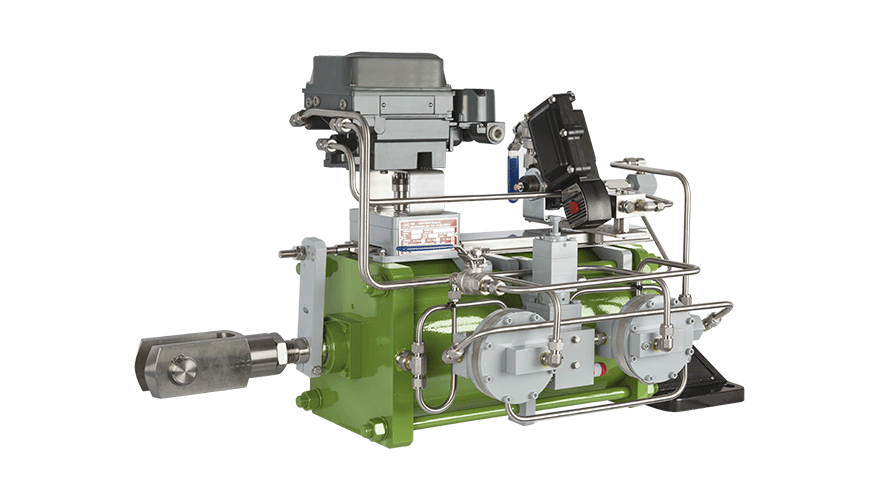

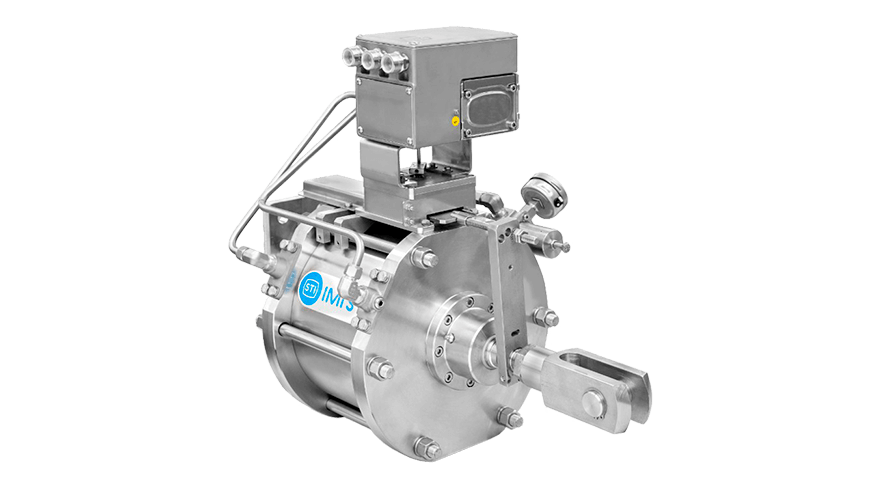

Linear Damper Actuator

SC is a complete line of linear double acting pneumatic actuators purposely designed and manufactured for the operation of flow control devices such as dampers, louvres, butterfly and ball valves. Thanks to their design, they are ideal for applications in power plants, refineries, pipe works and on board vessels.


  • Built in lubrication system makes it virtually maintenance free
  • Cylinder can be standard or special strokes
  • Double guide for piston and bushing
  • Excellent response times without need for boosters
  • Full stainless steel version available
  • Light and functional design allows easy installation
  • No dead volume is left in the actuator chamber in fully open or close position, minimising risk of overshoot
  • Suitable for harsh environments such as desert areas and petrochemicals plants

Technical data

Operating pressure

Pneumatic version up to 10 barg

(special version available on request)

Standard operating temperature

-20°C to 70°C

(lower or higher temperature on request)


Aluminum alloy for Ø 63 to 100

Carbon steel for Ø 125 to 420


Aluminum alloy for Ø 63 to 260

Carbon steel for Ø 330 to 420


Aluminum alloy for Ø 63 to 260

Carbon steel for Ø 330 to 420


Chromium plated alloy steel



PED 2014/68/EU

ATEX 2014/34/EU

EAC TR TS 012/2011

IP66 according to IEC/EN 60529

(further certifications are available, please contact us for updated list)
