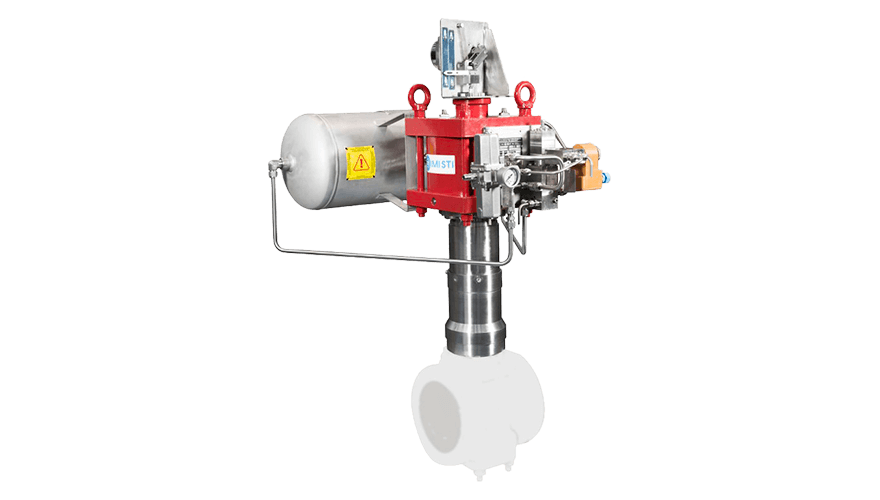

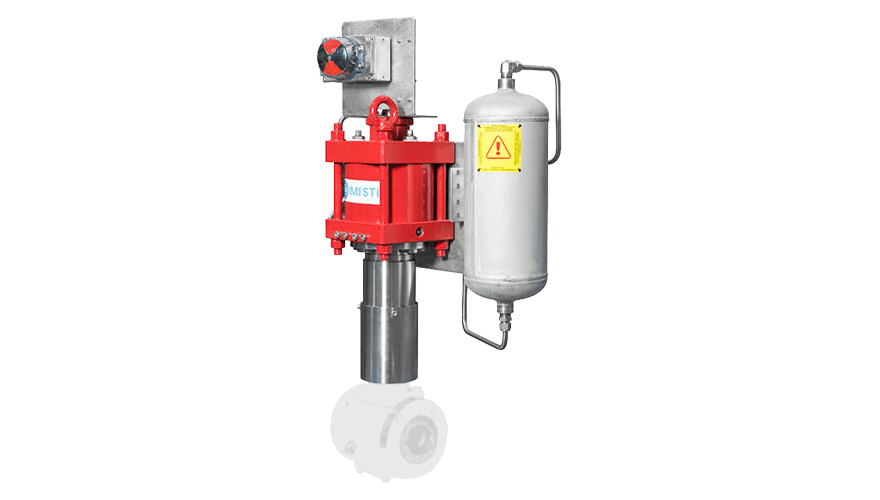

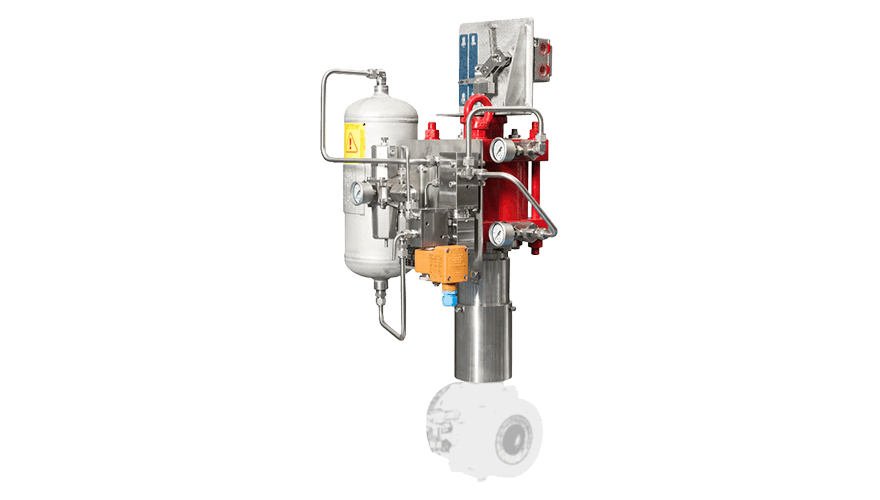

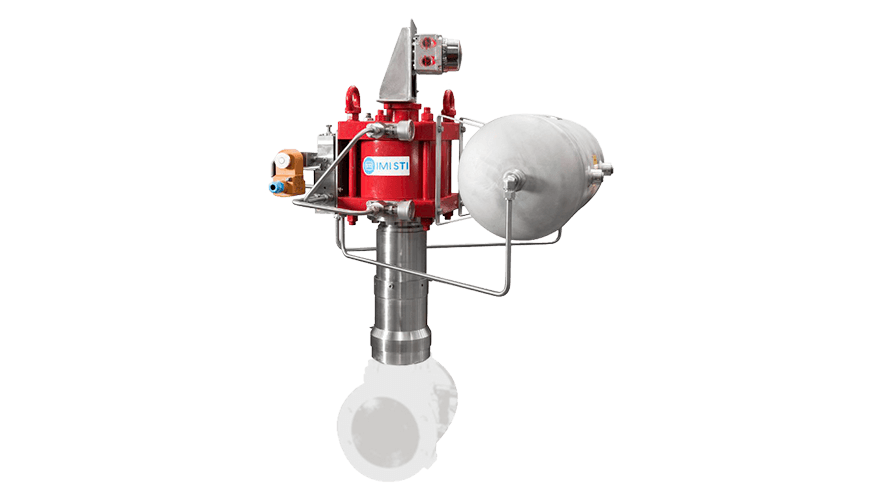

Lift & Turn Actuator

SC/VLT double acting pneumatic actuator has been purposely designed for double block and bleed valves, for on-off or modulating apllications. Different kind of pneumatic accessories could be mounted on the SC/VLT valve actuator depending on the performance required.


  • Built in lubrication system makes it virtually maintenance free
  • Direct connection between position indicator and valve stem without intermediate mechanism
  • Fully stainless steel design available
  • Yoke not only as support but with slide guide function
  • Manifold mounted 3-way valves and accessories for optimal performances and increased safety
  • Travel stop adjustable during opening

Technical data

Operating pressure

Pneumatic version up to 10 barg

(design up to 12 bar)

Standard operating temperature

-20°C to 70°C

(lower or higher temperature on request)

 Sizes available

160 mm

200 mm

Standard pneumatic supply medium

Air, nitrogen or sweet gas

(special version for sour gas on request)

Valve rotary movement


Valve linear movement

Up to 50 mm


PED 2014/68/EU

ATEX 2014/34/EU

EAC TR TS 012/2011

IP66 according to IEC/EN 60529

(further certifications are available, please contact us for updated list)

Contact us for more information
