Limit Switches / Position transmitter

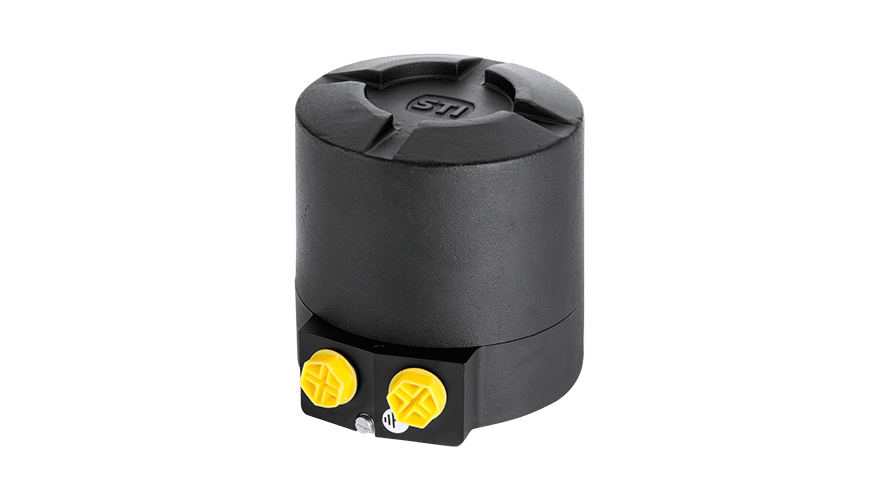

TR Limit Switch / Position transmitter is suitable for installation on rotary motion. It has been designed to meet various industrial application requirements, for example on board pneumatic actuators. The enclosure has the capability to house a wide range of either mechanical or inductive limit switches.
A shaft with manually-adjustable cam is used for accurate and easy setting of the limit switches, which are prewired to a terminal strip.


  • Available with integrated position transmitter
  • Easy access, robust terminal board suitable for 2.5 mm2 wires
  • Easy adjustable independent cam for switch position adjustment
  • Gold plated limit switch option available
  • Mechanical or Inductive limit switch
  • Up to 4 limit switches
  • Suitable for:
    Standard, offshore, sandstorm and copper-free ambient conditions
    Single and double acting actuators
    Low and high ambient temperature

Technical data

Housing materials

Cover in aluminum or stainless steel

Shaft in stainless steel

Standard operating temperature

-40°C to 85°C


Electrical data

Output signal 4 to 20mA

Supply 12 to 32 V

Conduit entries 1 or 2 - 1/2" NPT

Response time

≤0.2 s

Operating angle

30° to 90°


Protection degree IP66

ATEX EExd II 2 G EEx d IIC T6

CE and EMC certifications

Further certifications are available, please contact us for updated list.
