Exhaust Regulator

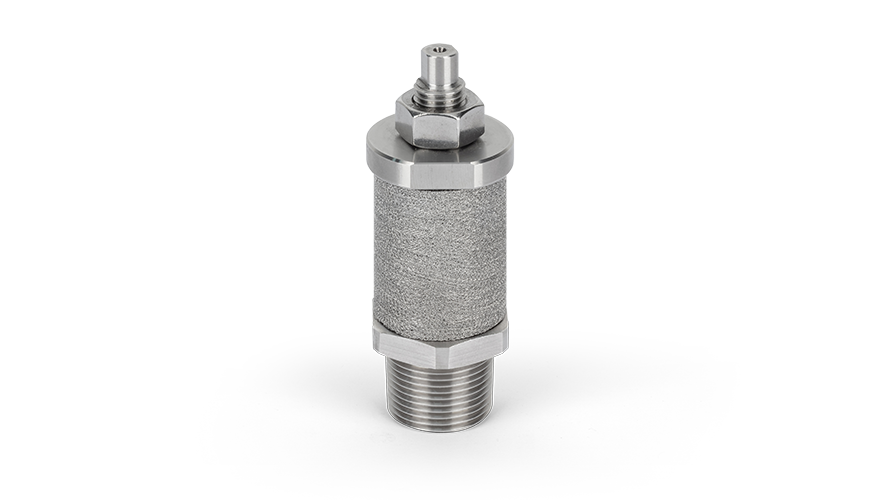

ER Exhaust Regulator is an adjustable restrictor which limits the exhaust air flow of a pneumatic component. The valve flow rate is adjustable by the setting screw, consequently it is possible to increase or decrease the actuator stroking time. The air can be exhaust from the actuator directly to the atmosphere or can be exhaust to the breather actuator cylinder chamber when it is used in a closed breather loop system.


  • Compact dimensions
  • Regulation screw cannot be ejected by internal air pressure
  • Possibility doing recycle air
  • Very fast exhausting air

Technical data

Operating pressure

3÷12 bar

(design pressure 12 bar)

Standard operating temperature

-20°C to 70°C

(lower or higher temperature on request)

Housing materials

Stainless steel 316

CV max

Exhaust = 13

Pilot signal connection





Output connections






Contact us for more information
