Quick Exhaust

CS Quick Exhaust is a 2 way valve used for on/off movement (trip or fail) to fully exhaust the connected chamber of the actuator. When this device is pilot operated and mounted on a modulating actuator, it allows quick exhausting of the connected chamber, even when piloted by a small CV device.


  • Big exhaust CV (up to 60)
  • Compact design
  • Flange mounted on actuator cap
  • Metal piston operated (diaphragm free)

Technical data

Operating pressure

2.5÷7 bar

(design pressure 10 bar)

Standard operating temperature

-20°C to 70°C

(lower or higher temperature on request)

Housing materials

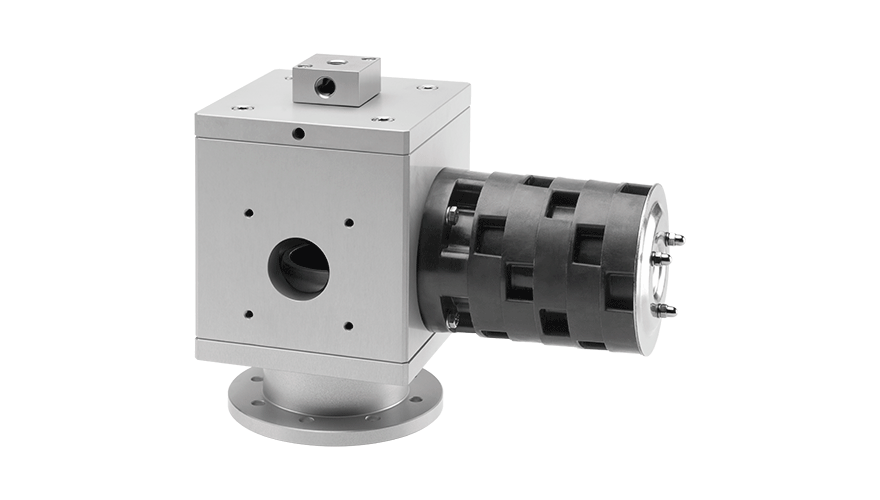

Anodized aluminium

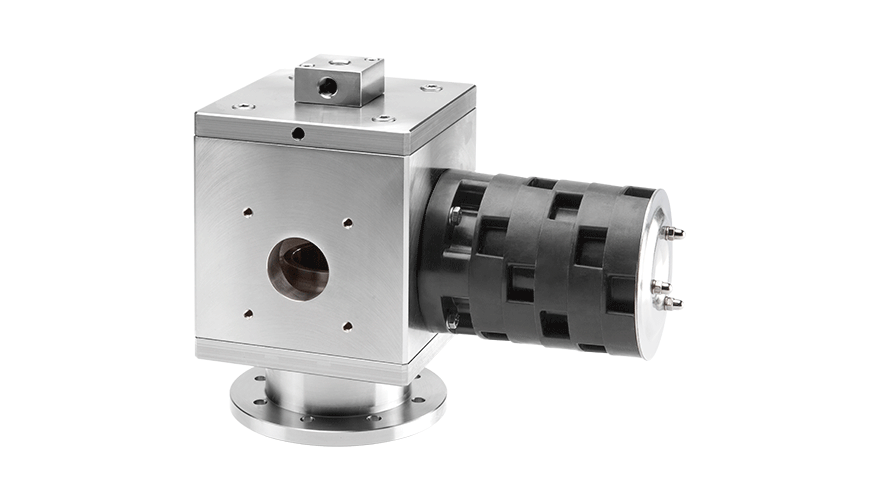

Stainless steel 316

CV max

Outlet = 60


Pilot signal connection

ND 1/4”

Exhaust connections

Dedicated to SL

Contact us for more information
