CF

Fast 3 Way Valve

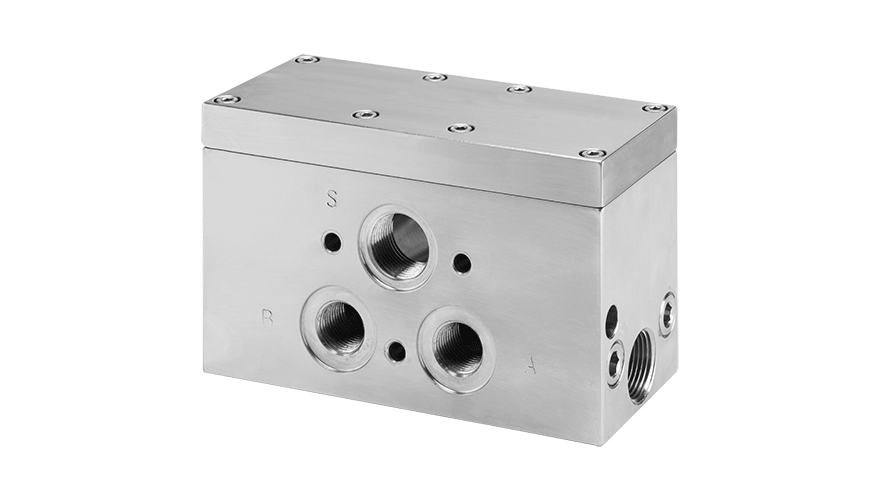

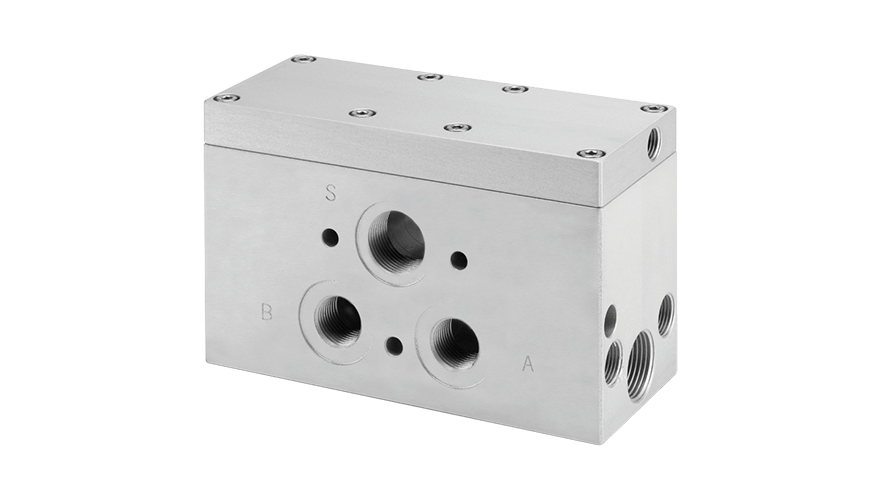

CF Fast 3 Way Valve (or Fast Commutator) contains two 3 way valves with a shared pilot conduit. As the pilot fluid moves a single membrane, the switching speed is maximised.

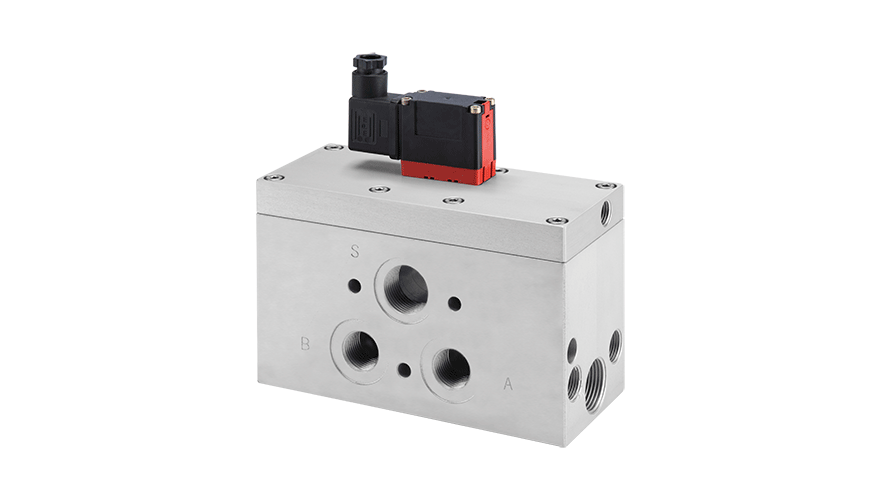

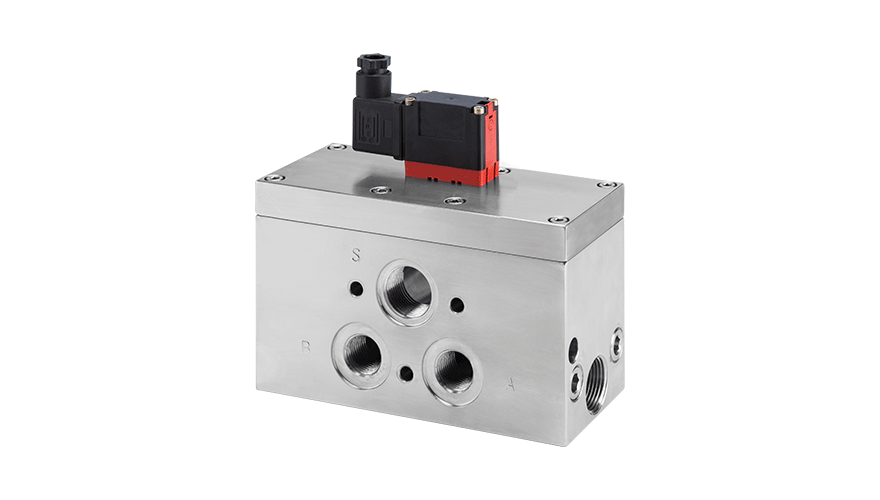

This product is specifically designed to be mount on FT positioner, up to 3 units if multiple functions are needed (quick open, quick close, lock in place). For fail freeze function, an integrated piezo solenoid valve is available as optional.

Plus

  • Compact dimensions
  • Without deformable diaphragm
  • SIL certified
  • Very fast pilot switching, even if piloted by low CV solenoid valve

Technical data

Operating pressure

2.5÷7 bar

(design pressure 10 bar)

Standard operating temperature

-20°C to 70°C

(lower or higher temperature on request)

Housing materials

Anodized aluminium

Stainless steel 316

CV max

Inlet = 3

Outlet = 3

Pilot signal connection

ND 1/2”

Output connections

 ND 3/4”

Contact us for more information
